Bolted upright frame & Welded upright frame

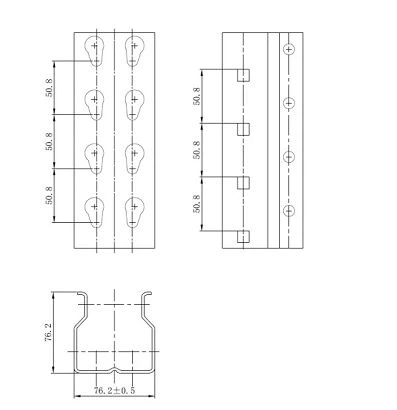

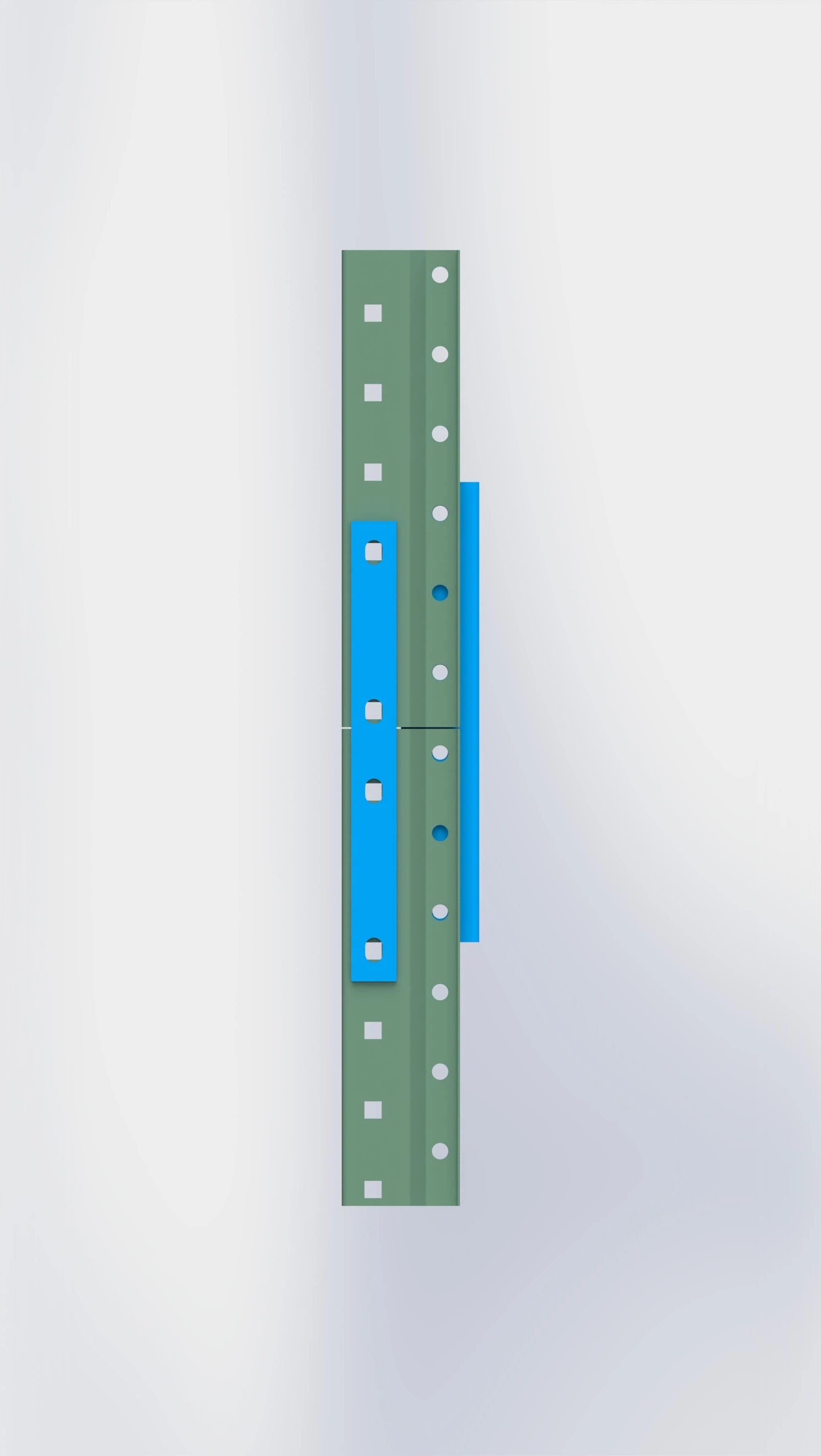

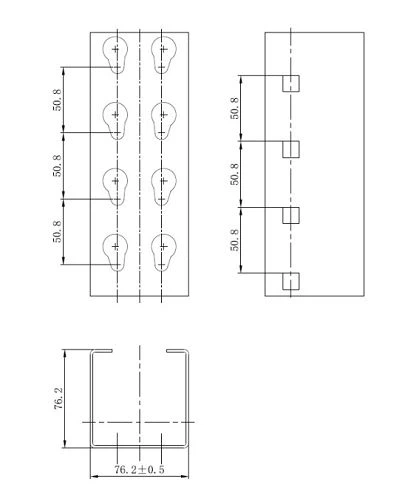

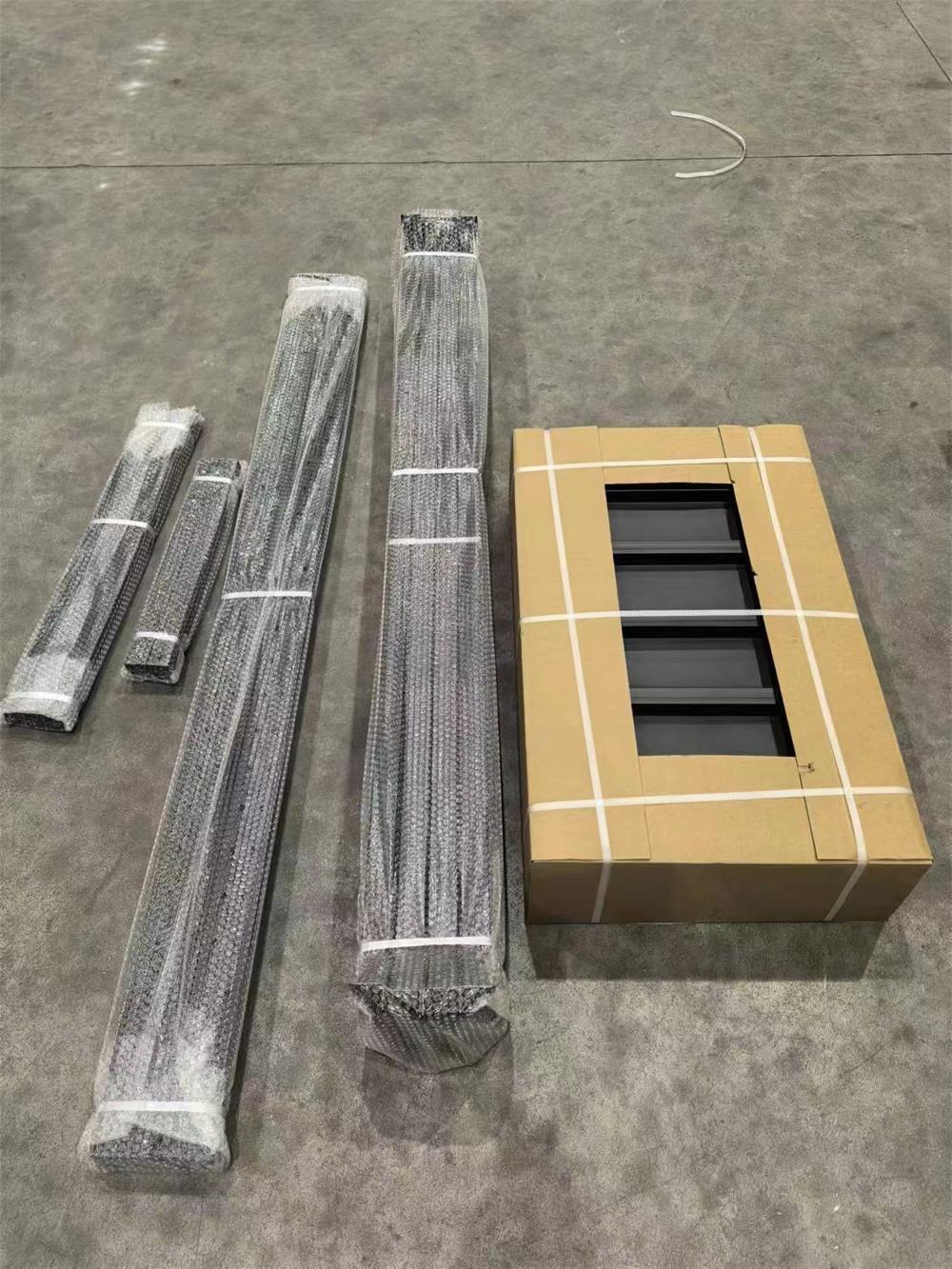

Bolted upright frame-The column and cross diagonal brace are connected by bolts, which means that we can disassemble different parts and pack them separately when shipping and loading containers, which means that we can load more goods and reduce the waste of container space. This product is widely used in the United States. The section of the column is generally shareholder's, and only the height and thickness are constantly changing, We can achieve customization, such as double welded columns, or columns need to be welded backer

The characteristic of welded column is that the transverse diagonal brace is directly welded on the column, which reduces the assembly cost of the column in the user's local area. Moreover, due to the welding process, there will be no loosening of the bolt, and the bearing capacity is stronger than that of ordinary bolt column, but the utilization rate of the container will be greatly reduced because it occupies a lot of volume，The section of the welded column is C-type, while the bolt type is Ω type

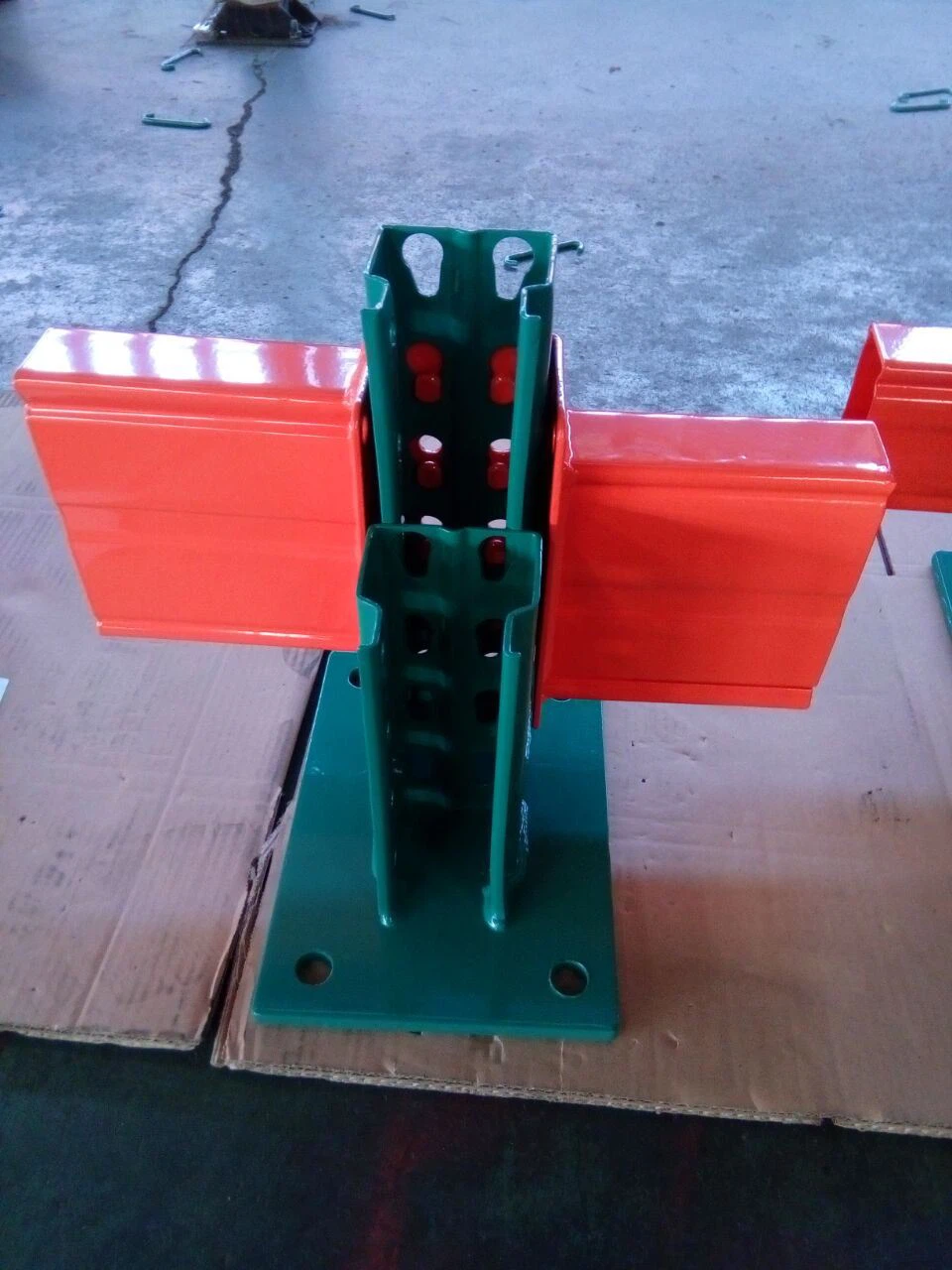

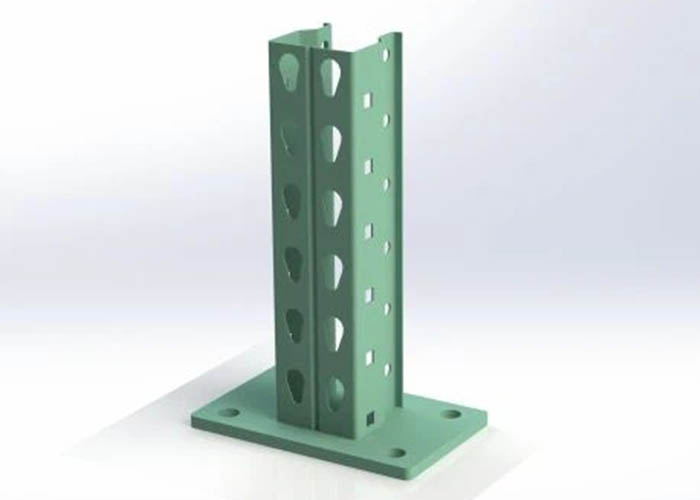

Baseplate

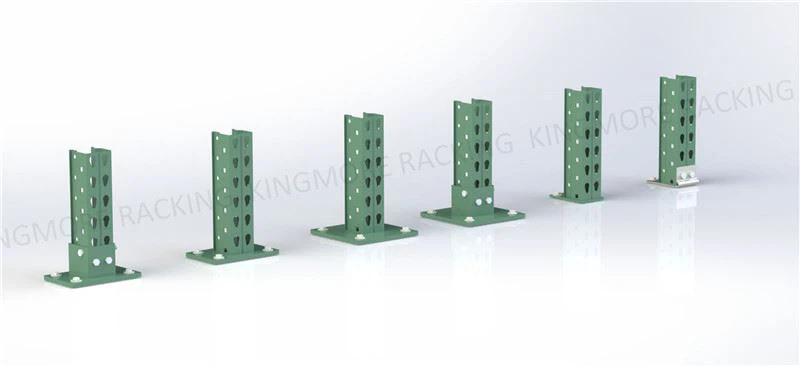

We can also use bolt or welding type for the base plate of column. Different states in the United States have different regulations and requirements, so we are almost compatible with all types.

Step beam

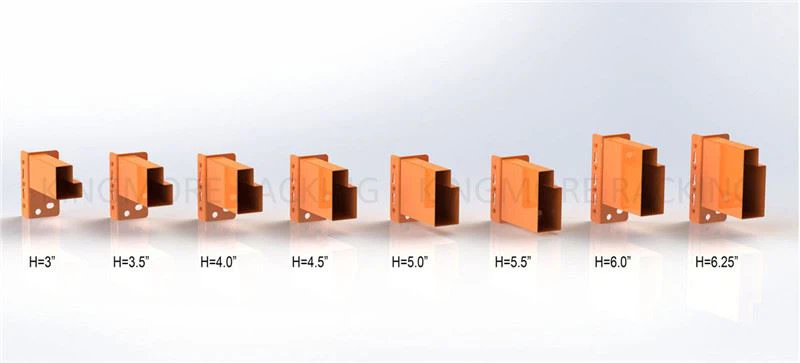

American beam is special. It is ladder shaped. The two sides of the ladder remain unchanged. It can be used to place grid laminates or trays directly. What affects the bearing capacity of American beam is its thickness and section height. The higher the section is, the greater the bearing capacity is. The higher the thickness is, the greater the bearing capacity is. Beam connector has three claws and four claws. We have conventional American safety pins, There are also elastic safety pins, which are generally pre installed at the time of delivery.

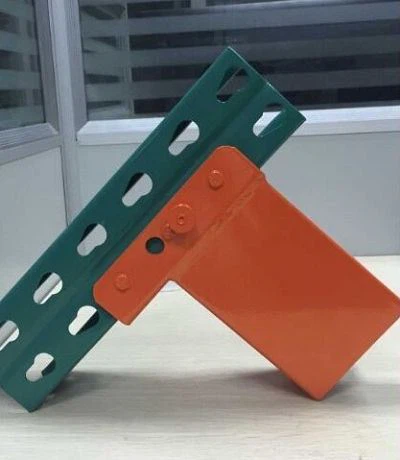

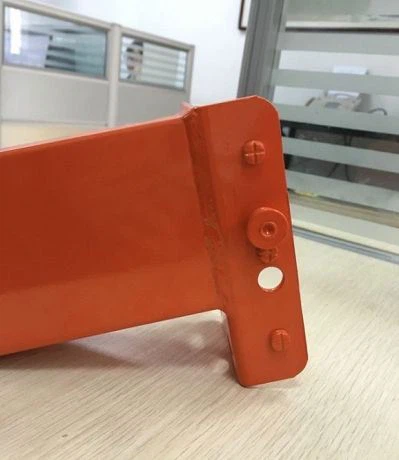

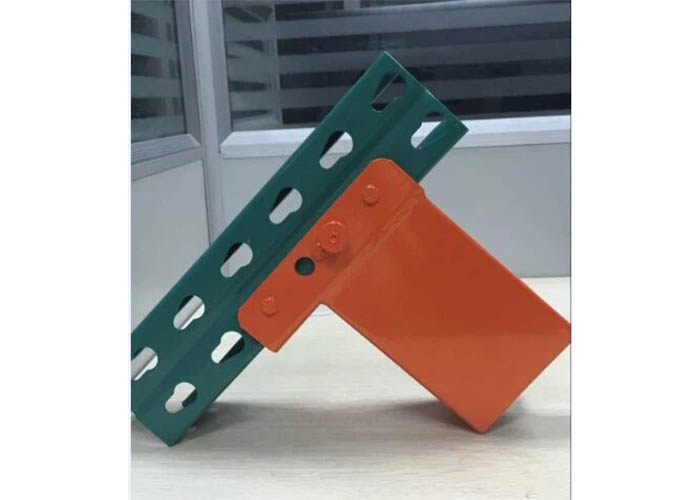

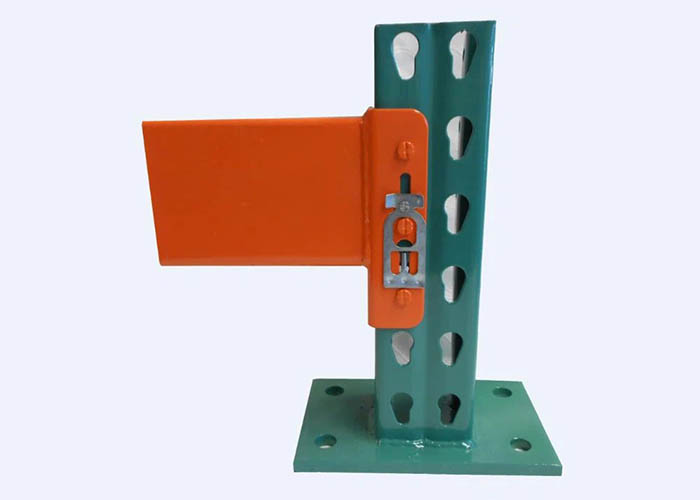

The following is a display of some actual pictures. This is a conventional safety pin：

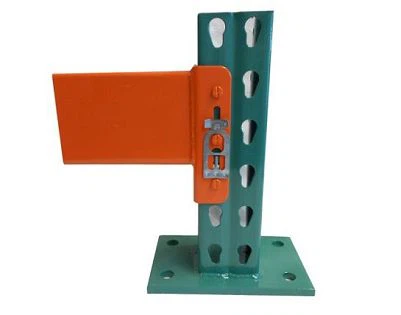

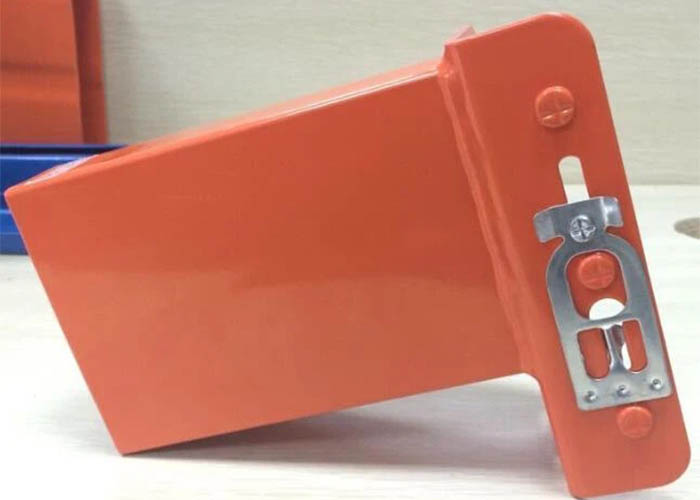

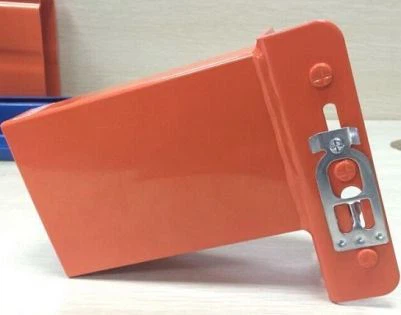

Spring automatic safety locks:

Accessories

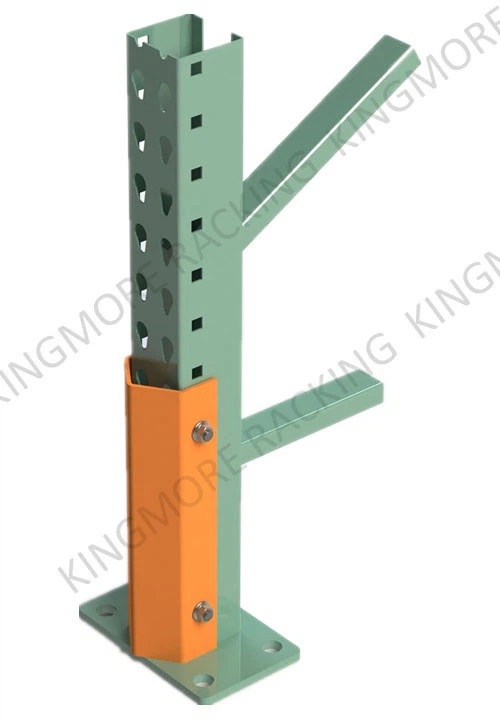

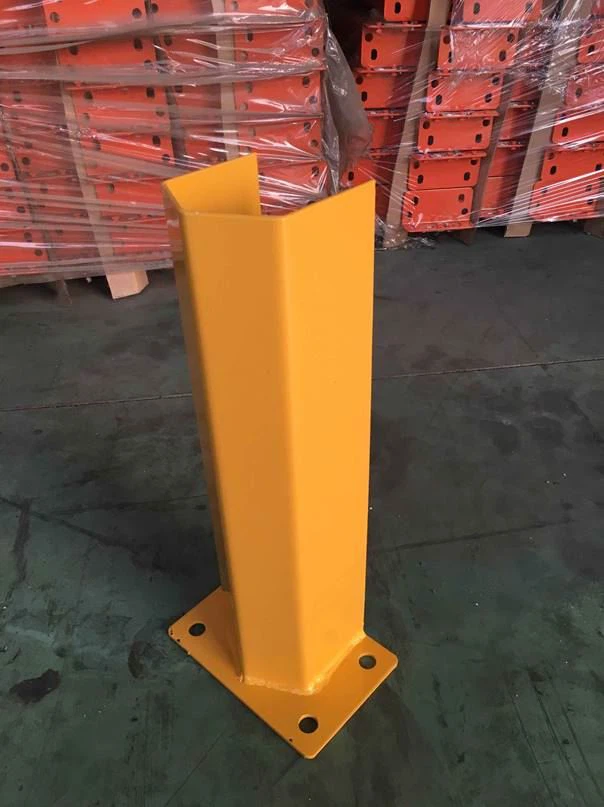

The accessories include wire mesh decking, pallet support bar, double-sided row spacer, foot protection, etc. there are different types of foot protection. You can also send us the types you need, because we don't display all the types on the website
